IndexScan Class Reference

#include <indexscan.h>

Inheritance diagram for IndexScan:

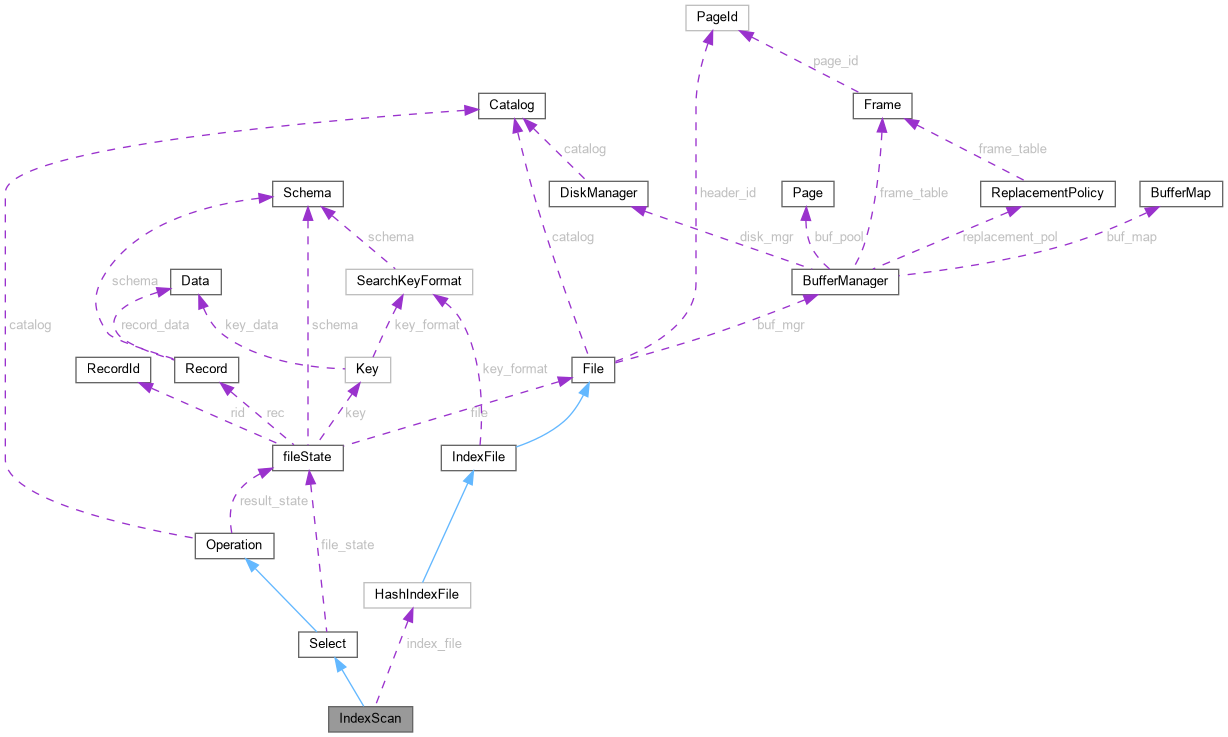

Collaboration diagram for IndexScan:

Public Member Functions
	IndexScan (FileId rel_id, FileId index_id, FileId result_id, std::vector< FieldId > fields, std::vector< Comp > comps, std::vector< void * > values, Catalog *catalog)
	Constructor for IndexScan select operation.
	~IndexScan ()
	Destructor for IndexScan. Delete dynamic member variables.
void	runOperation ()
	Runs the operation. This is a pure virtual method, and is implemented in inherited classes. All child classes must implement this method.
Public Member Functions inherited from Select
	Select (FileId rel_id, FileId result_id, std::vector< FieldId > fields, std::vector< Comp > comps, std::vector< void * > values, Catalog *catalog)
	Constructor for Select operation. Both FileScan and IndexScan use this constructor.
	~Select ()
	Destructor for the Select Operation.
Public Member Functions inherited from Operation
	Operation (FileId result_id, Catalog *catalog)
	Constructor for the Operation class. Because Operation is an abstract class, an object cannot be created, but this constructor is used by derived classes.
virtual	~Operation ()
	Destructor for the Operation class. Cleans up dynamic memory in result state.

Private Attributes
HashIndexFile *	index_file

Additional Inherited Members
Protected Member Functions inherited from Operation
void	_initState (FileId file_id, std::vector< FieldId > fields, fileState *state)
	Performs the file and temporary record setup for relational operators.
void	_delState (fileState *file_state)
	Deletes objects created in relop structs.
Protected Attributes inherited from Select
std::vector< FieldId >	fields
std::vector< Comp >	comps
std::vector< void * >	values
fileState	file_state
Protected Attributes inherited from Operation
fileState	result_state
Catalog *	catalog

Detailed Description

Select is an abstract class that lays the foundation for select operations

Constructor & Destructor Documentation

IndexScan()

IndexScan::IndexScan	(	FileId	rel_id,
		FileId	index_id,
		FileId	result_id,
		std::vector< FieldId >	fields,
		std::vector< Comp >	comps,
		std::vector< void * >	values,
		Catalog *	catalog
	)

Constructor for IndexScan select operation.

Parameters

rel_id.	FileId of the relation file.
index_id.	FileId of the index file.
result_id.	FileId of the result file.
fields.	Vector of field ids for the select operation.
comps.	Vector of Comps for the select operation.
values.	Vector of Void * for the select operation.
catalog.	Catalog * for SwatDB.

Member Function Documentation

runOperation()

void IndexScan::runOperation ( )

virtual

Runs the operation. This is a pure virtual method, and is
implemented in inherited classes. All child classes must implement
this method.

Precondition

Valid files and parameters have been passed to the contructor.

Postcondition

Result file has been populated with records that meet the criteria of the operation.

Implements Operation.

Member Data Documentation

index_file

HashIndexFile* IndexScan::index_file

private

HashIndex * for the index file being selected on.

---

The documentation for this class was generated from the following file:

• indexscan.h
