IndexFile Class Reference

#include <indexfile.h>

Inheritance diagram for IndexFile:

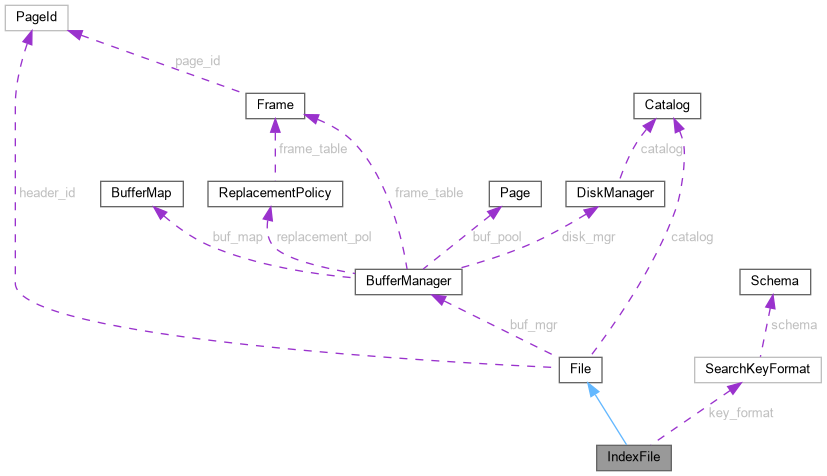

Collaboration diagram for IndexFile:

Public Member Functions
	IndexFile (Catalog *catalog, BufferManager *buf_mgr, FileId relation, std::vector< std::string > field_list)
	Constructor for IndexFile class.
	IndexFile (Catalog *catalog, BufferManager *buf_mgr, FileId relation, std::vector< FieldId > field_list)
	Constructor for IndexFile class.
virtual	~IndexFile ()
	Destructor. Data members are cleaned up, but none of the dynamically allocated data members are deleted. The underlying Unix file is not deleted.
SearchKeyFormat *	getKeyFormat ()
	Returns the key format of the Index.
virtual void	insertEntry (Key key, RecordId record_id)=0
	A virtual method for inserting a <Key, RecordId> entry into the IndexFile.
virtual std::vector< RecordId >	getEntries (Key key)=0
	A virtual method for getting a list of entries with the given key.
virtual void	deleteEntry (Key key, RecordId record_id)=0
	A virtual method for deleting an entry of the given Key and RecordId.
virtual void	deleteKey (Key key)=0
	A virtual method for deleting all entires with the given key.
Public Member Functions inherited from File
	File (Catalog *catalog, BufferManager *buf_mgr)
	Constructor. Initializes common state associated with every file, including catalog, buf_mgr, and schema.
virtual	~File ()
	Destructor. Data members are cleaned up, but none of the dynamically allocated data members are deleted. The underlying Unix file is not deleted.
virtual void	createHeader ()=0
	Allocates and initializes the header. Is a virtual method to be overridden at each derived class.
virtual void	flushHeader ()=0
	Flushes Header Page to disk. Is a virtual method to be overridden at each derived class.
FileId	getFileId ()
	Returns the FileId of the File.
virtual void	printFile ()
	Prints out information and/or the contents of the file. Can be overwritten in derived classes. Useful for debugging and testing purposes.
PageId	getHeaderId ()
	Returns Header PageId.

Protected Attributes
FileId	relation
SearchKeyFormat *	key_format
Protected Attributes inherited from File
FileId	file_id
Catalog *	catalog
BufferManager *	buf_mgr
PageId	header_id

Additional Inherited Members
Protected Member Functions inherited from File
void	_setFileId (FileId file_id)
	Sets the file_id and the schema fields of this File.

Detailed Description

SwatDB IndexFile Class. Represents index file in the system. It is an abstract class from which lower level index file implementations (B+ tree and Hash index) inherit. abstract methods for inserting and deleting entries are defined. There may be other lower level methods that are implementation specific (and hence not defined here).

Constructor & Destructor Documentation

IndexFile() [1/2]

IndexFile::IndexFile	(	Catalog *	catalog,
		BufferManager *	buf_mgr,
		FileId	relation,
		std::vector< std::string >	field_list
	)

Constructor for IndexFile class.

Precondition

A valid Catalog pointer and BufferManager pointer are provided as inputs.

Postcondition

IndexFile object is constructed. Catalog, BufferManager,
and relation FileId are set to the given values. Appropriate key format is constructed based on field_list. FileId and Header Page data are set later.

Parameters

catalog	Pointer to the SwatDB Catalog object.
buf_mgr	Pointer to the SwatDB BufferManager object.
relation	FileId of the relation of which the index is created.
field_list	The list of the attributes for which the index is created.

IndexFile() [2/2]

IndexFile::IndexFile	(	Catalog *	catalog,
		BufferManager *	buf_mgr,
		FileId	relation,
		std::vector< FieldId >	field_list
	)

Constructor for IndexFile class.

Precondition

A valid Catalog pointer and BufferManager pointer are provided as inputs.

Postcondition

IndexFile object is constructed. Catalog, BufferManager,
and relation FileId are set to the given values. Appropriate key format is constructed based on field_list. FileId and Header Page data are set later.

Parameters

catalog	Pointer to the SwatDB Catalog object.
buf_mgr	Pointer to the SwatDB BufferManager object.
relation	FileId of the relation of which the index is created.
field_list	The list of the attributes for which the index is created.

Member Function Documentation

deleteEntry()

virtual void IndexFile::deleteEntry ( Key  key, RecordId  record_id  )

pure virtual

A virtual method for deleting an entry of the given Key and RecordId.

Parameters

key	Key of the entry to be deleted.
record_id	RecordId of the entry to be deleted.

Implemented in HashIndexFile.

deleteKey()

virtual void IndexFile::deleteKey ( Key  key )

pure virtual

A virtual method for deleting all entires with the given key.

Parameters

key	Key and the RecordId of the entries to be deleted.

Implemented in HashIndexFile.

getEntries()

virtual std::vector< RecordId > IndexFile::getEntries ( Key  key )

pure virtual

A virtual method for getting a list of entries with the given key.

Parameters

key	Key of the entries to be retrieved.

Implemented in HashIndexFile.

getKeyFormat()

SearchKeyFormat * IndexFile::getKeyFormat

(

)

Returns the key format of the Index.

Returns

key_format of the Index.

insertEntry()

virtual void IndexFile::insertEntry ( Key  key, RecordId  record_id  )

pure virtual

A virtual method for inserting a <Key, RecordId> entry into the IndexFile.

Parameters

key	Key of the entry to be inserted.
record_id	RecordId of the entry to be inserted.

Implemented in HashIndexFile.

Member Data Documentation

key_format

SearchKeyFormat* IndexFile::key_format

protected

Format of the key.

relation

FileId IndexFile::relation

protected

FileId of the relation the index belongs to.

---

The documentation for this class was generated from the following file:

• indexfile.h
