Run update21, if you haven't already, to create the
cs21/labs/04. Then cd into your cs21/labs/04
directory and create the python programs for lab 4 in this directory
(handin21 looks for your lab 4 assignments in your cs21/labs/04 directory):
$ update21
$ cd cs21/labs/04
$ pwd
/home/your_user_name/cs21/labs/04
Your programs are graded on both correctness and style. Please review
the comments regarding programming style on the main page.
1. Drawing a face
Open a file drawFace.py and create a program that draws a
face using the graphics library. Here are some guidelines to
follow:
-
Your program should keep the drawn face on the graphics window until
the user clicks the mouse. Then the graphics window should close and
your program should end.
-
Use color and several different types of shapes.
-
For symmetrical features (such as eyes or ears), remember to use the
clone method to make a copy of the original shape. Then
draw the cloned shape in the window and move it to
the desired location.
-
You may want to use the setCoords method of the
GraphWin object to adjust the coordinates of the window. You
can read about this method on page 152 of the textbook.

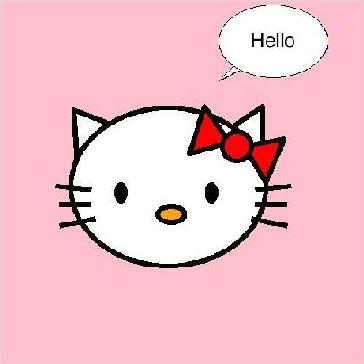

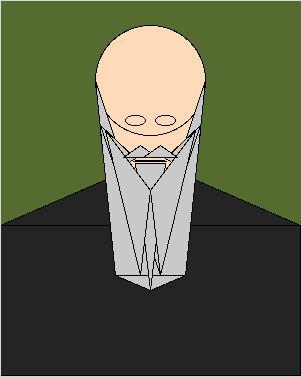

Be creative! For inspiration, here are two example faces from previous
cs21 students: Hello Kitty by Angela Meng and Charles Darwin by Elliot Padgett.
2. Drawing a Sailboat with mouse clicks
Open a file
drawBoat.py and create a program that draws a
sailboat into positions in the graphics window determined by the user's
mouse clicks as follows:
-
You should start with a blue rectangle at the bottom to represent water.
-
The first two clicks will indicate the opposite corners of the
rectangular body of the boat (called the "hull").
The first click should be the lower
left corner and the second click should be the upper right corner.
-
The third click will indicate the top of the mast for the boat. The mast is the pole that holds up the sail. You should draw a rectangle for the mast and a triangle for the sail. The three corners of the sail should be
(a) the top of the mast,
(b) the back of the boat just above the hull,
(c) and the bottom of the mast just above the hull. See example images below.
-
The fourth click will indicate the center of the sailors head,
and the fifth click will indicate the width (radius) of the her head.
You may also want to draw in a body for the sailor. Be creative.
-
The sixth click should start some sort of animation. (See below for details.)
Be sure to include a
Text box at the top of the graphics
window to explain each step to the user of your program so that s/he
knows what the next mouse click means.
Below is an example of the output that might be produced by this
program. Feel free to choose your own color scheme and to make
your boat parts (hull, mast, sailor) to be more interesting than
mine.
They should, however, consist of these basic parts: water,
hull, mast, sail, sailor, text.
As you solve this problem, keep in mind that the point of the mouse click
is not always an (x,y) coordinate that you can directly use to create
the object. For example, you may need to shift the (x,y) coordinate values
by some amount or you may need to use the distance formula to find the
distance between two (x,y) coordinate values.
Once you have completed the above requirements, add an animated feature
to the scene. Some ideas could be a cloud that drifts across the screen,
the boat sailing out of the screen, a fish swimming in the water, ...

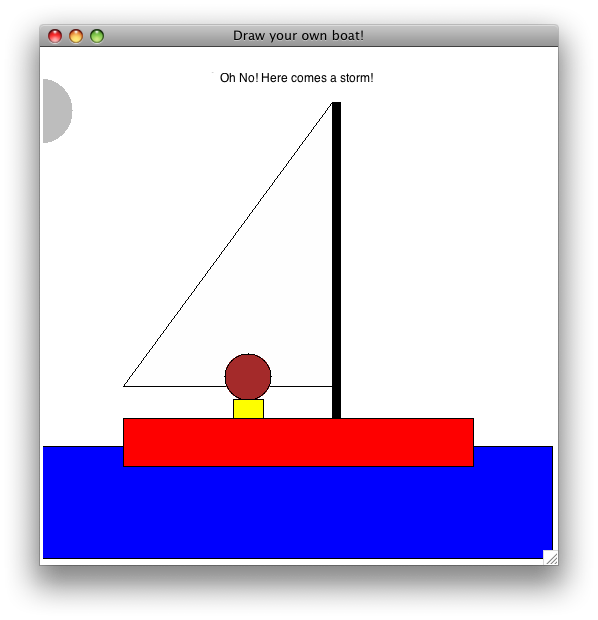

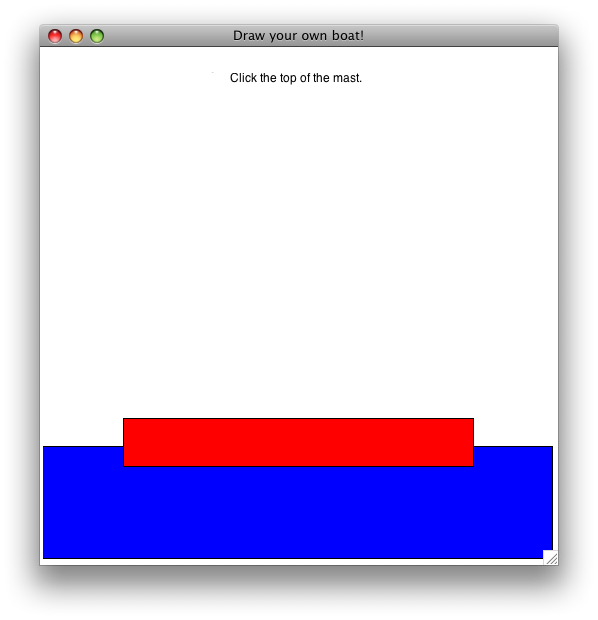

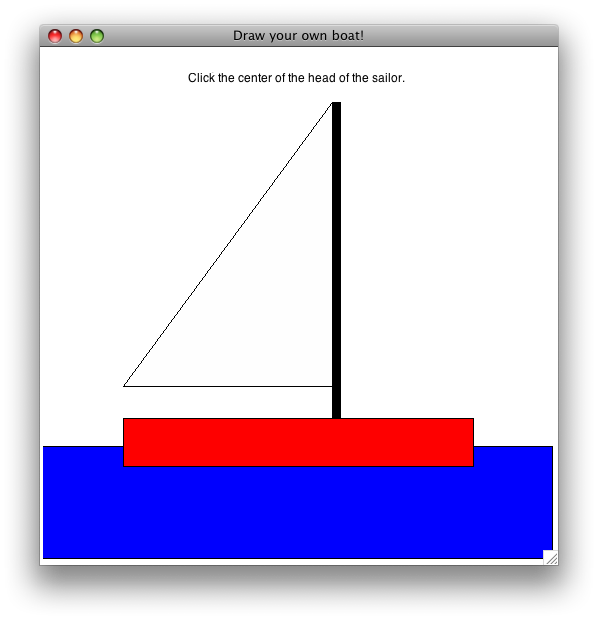

Here are window dumps from parts of a run of my solution:
Submit
Once you are satisfied with your programs, hand them in by typing
handin21 in a terminal window.
