CS21 Lab 11: ZIP Codes

Due 11:59pm Tuesday April 14

You may work with one partner on this assignment. If you work with a partner, put your name and the name of your partner in the list of authors at the top of your program. Only one partner needs to run handin21 to submit the files for the group. Both partners will receive the same grade.

Some of the problems will have optional components that allow you to further practice your skills in Python. Optional portions will not be graded, but may be interesting for those wanting some extra challenges.

Run update21, if you haven't already, to create the cs21/labs/11 directory. Then cd into your cs21/labs/11 directory and create the python programs for lab 11 in this directory (handin21 looks for your lab 11 assignments in your cs21/labs/11 directory).

ZIP Code Database
What US city has the ZIP code 12345? What is the ZIP code for Truth or Consequences, NM? How far is it from Fairbanks, AK to Miami, FL? What US city with a population over 100,000 is closest to Minot, ND? Your assignment is to edit the file zipcode.py to create a program that answers these types of questions.

The file /usr/local/doc/zipcodes.txt contains the data you need to write your program. Each line of the file contains seven fields separated by commas representing the ZIP code, latitude, longitude, city name, county name, state, and population, respectively. The entry for Swarthmore is shown below:

19081,39.897562,-075.346584,Swarthmore,Delaware,PA,9907

The full file has entries for 41824 unique ZIP codes. You can open up the file in any text editor if you would like to look at the file in more detail. When you read in a line from this file in python you can use line.split(",") to separate the line into a list of strings.

Your program should prompt the user for two cities. The user can lookup a city by ZIP code or by a city name and its two letter state abbreviation. For each city, display the following information:

In addition to the information above, display the distance between the two cities the user typed.

A sample run is shown below:

This program creates a database of information about cities
throughout the United States.  It allows you to enter two
cities (either by zip code or by city and state) and reports
the distance between them.
--------------------------------------------------------
CITY #1
Enter a zip code or city, state> Swarthmore, PA
 City, State, ZIP:  Swarthmore, PA, 19081
           County:  Delaware
       Population:  9907
       Lat / Long:  39.90 / -75.35
 Closest big city:  Philadelphia, PA (6.1 miles)

CITY #2
Enter a zip code or city, state> 59453
 City, State, ZIP:  Judith Gap, MT, 59453
           County:  Wheatland
       Population:  307
       Lat / Long:  46.68 / -109.64
 Closest big city:  Billings, MT (77.8 miles)

Distance between Swarthmore, PA and Judith Gap, MT is 1773.8 miles

Check more locations (yes/no)? yes
--------------------------------------------------------
CITY #1
Enter a zip code or city, state> 94130
 City, State, ZIP:  San Francisco, CA, 94130
           County:  San Francisco
       Population:  776733
       Lat / Long:  37.82 / -122.37
 Closest big city:  Oakland, CA (2.9 miles)

CITY #2
Enter a zip code or city, state> Boston, MA
 City, State, ZIP:  Boston, MA, 02120
           County:  Suffolk
       Population:  359585
       Lat / Long:  42.33 / -71.10
 Closest big city:  Cambridge, MA (2.2 miles)

Distance between San Francisco, CA and Boston, MA is 2690.6 miles

Check more locations (yes/no)? no

If you cannot find an entry for a particular city or ZIP code, inform the user that you cannot find that location and prompt them to enter another location.

Requirements
You should practice good top-down design, incrementally implement and test your solution, and document your code with comments. While much of the design is up to you, the requirements below are designed to avoid some headaches in the initial design.

You are required to use two dictionaries to store the records for each city. One dictionary must be indexed on zipcode. For example, if the dictionary is called zipDict then zipDict['19081'] should return all the necessary information about Swarthmore, PA. The other dictionary must be indexed on a string created from the city and state. For example, if the dictionary is called cityDict then cityDict['Swarthmore,PA'] should also return all the necessary information about Swarthmore, PA.

In addition to the requirements above, we have included some tips and problems to watch out for below.

ZIPs as Strings
While you will be doing actual numerical computations with latitudes, longitudes, and populations, you do not need to numerically compare ZIP codes (it is OK to do string comparisions of ZIP codes). Furthermore, ZIP codes beginning with zeroes will be truncated if interpreted as integers, e.g., 01238 will be interpreted as 1238. Store and print ZIP codes as strings instead of numbers and you will save yourself a number of headaches.

Reporting ZIP codes

Some large cities (Philadelphia, PA, for example) have multiple ZIP codes. When asked to report a ZIP code for a city, you can decide how to handle this. Possible options include reporting all ZIP codes for a particular city, reporting the first ZIP code you find for that city, reporting one example ZIP code and stating there are other possibilities, or designing a method of your own choosing. You must report at least one ZIP code for a city if it is in the list of known cities.

Reporting Closest Cities

Be careful when reporting the closest city to a given city. Do not report the same city. For example, the city with a population over 100,000 closest to Philadelphia, PA, should not be Philadelphia, PA, but some other city. This is further complicated by the fact that many big cities have multiple ZIP codes, when reporting the closest big city, ensure that the city names are in fact different.

Computing Distances

You should use the "great circle" distance formula to compute the distance between two cities. If the first city is at a geographic location (lat1, long1), and the second city is at (lat2, long2), then the distance between the two cities is given by the formula:

D = R * acos( sin(lat1)*sin(lat2)+cos(lat1)*cos(lat2)*cos(long2-long1) )

Where R is the radius of the Earth (3963.1676 miles or 6378.1 kilometers), and acos is the inverse cosine. You can get this function (as well as cos and sin) by importing the math module in python. Note that each lat/long must be converted from degrees to radians before computing a sine or cosine. Use the python function radians imported from the math library to convert from degrees to radians.

Missing Data

This data file we have provided you is by no means complete. Some ZIP codes were missing or did not have lat/long data and were removed. For some cities, we did not have population data, so we set the population arbitrarily to 0. If your favorite US city or hometown in the US is missing and you know all the info (ZIP, city name, county name, state, lat, long, and population), let us know and we will be happy to add a few cities, but we are not trying to maintain a comprehensive list.

Optional Components
As noted above, these questions are NOT required to receive full credit. Furthermore, do not attempt to solve these problems until the required portion of the assignment is complete. There are many extensions you could add to this program. Here are a few we thought might be interesting.

k-closest cities

Instead of printing the closest city with a population over 100,000 (or some other threshold), find the k-closest large cities. Make sure that your cities are distinct. For example, if the user asks for the five closest large cities to Swarthmore, do not report five separate ZIP codes that are all located in Philadelphia.

Most isolated city

Find the city whose population is less than 100,000 (or some other threshold) and whose closest city with a population over 100,000 is furthest away. What happens as you change the population threshold? Note that this computation could be very time consuming. It might help to first build a separate list or dictionary of only the cities with a population over 100,000. There are only 224 such cities in our list, but these cities have over 6800 ZIP codes. On my desktop, computing the closest city out of all possible cities for 10 separate cites took just under two seconds. For 1000 separate cities the calculation takes just over two minutes. Computing the distance between every pair of cities in the data set would take about an hour and a half. I don't recommend waiting that long for this assignment.
OPTIONAL: Plot ZIP codes
Plot a map of the locations of all the ZIP codes in a particular state, a particular county, or in a particular numerical range. The graphics library becomes very slow when plotting hundreds or thousands of points, so do not try to plot all the zip codes. If you get really fancy, you can draw circles to represent a ZIP code that is proportional to the size of the city. You could end up with something cool or a big messy blob. Excluding Alaska and Hawaii helps with the drawing, but may make Alaskans and Hawaiians upset. One cool version of this idea is the zipdecode project. Getting a decent looking picture requires you to scale the graphics window appropriatly so non-squarish states don't look too stretched or squished. To do this you can use the longitude and latitude as x and y coordinates, respectively. You will want to create your graphics window so that it has the same aspect ratio as the state that you are drawing, and you will want to set the coordinates of the graphics window so that they match the minimum and maximum latitude and longitude of the state that you are drawing.

Creating the graphics window

Let's use the state of Iowa as an example. Iowa's latitude ranges from a minimum of 40.542856 to a maximum of 43.464701; Iowa's longitude ranges from a minimum of -96.509390 to a maximum of -90.218704. The aspect ratio of Iowa can be computed by taking the difference between the min and max latitude (the y coordinate) and the difference between min and max longitude (the x coordinate), and then computing their ratio. For Iowa, this turns out to be approximately .4645 since Iowa is wider than it is tall (see a map of Iowa). This means that when drawing Iowa, the dimensions of the graphics window in the y dimension (up/down) should be approximately .4645 times that of the x direction (left/right). You will want your graphics window to have a fixed size in the x direction of 500 pixels. You will need to compute the size of the y direction based on the aspect ratio.

Plotting the points

Before plotting the points, you will want to first use setCoords to set the coordinates of the window to match the min/max latitude/longitude of the state you are drawing.

To plot the points, simply draw a black Point at each latitude and longitude in the zipcode database that corresponds to the state the user entered. For cities with a population larger than 250000 (or some smaller threshold for "flyover" states), you should draw a small red Circle, rather than a Point. Be sure that the size of your circle is proportional to the size of the coordinate space you are drawing in. Doing this will ensure that red circles you are drawing in Connecticut (a small state) will have the same size circle as cities in Florida (a large state).

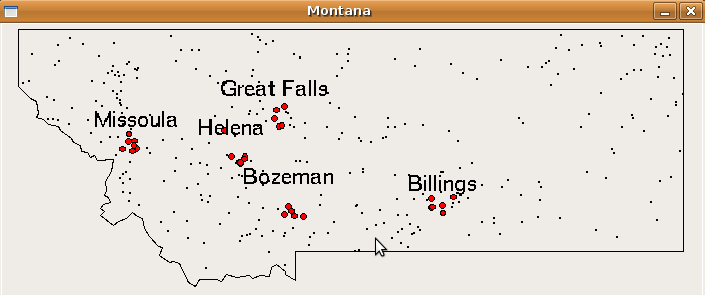

For example, below is the picture of Montana produced from this data (the boundary polygon comes from another source. If you are interested in this, contact Prof. Danner.) After plotting the points, wait for a mouse click to close the window.


Submit

Once you are satisfied with your program, hand it in by typing handin21 in a terminal window.
