Lab 6: Convolutional Neural Networks
Due November 7 by midnight

Starting point code

Use Teammaker to form your team. You can log in to that site to indicate your partner preference. Once you and your partner have specified each other, a GitHub repository will be created for your team.

Introduction

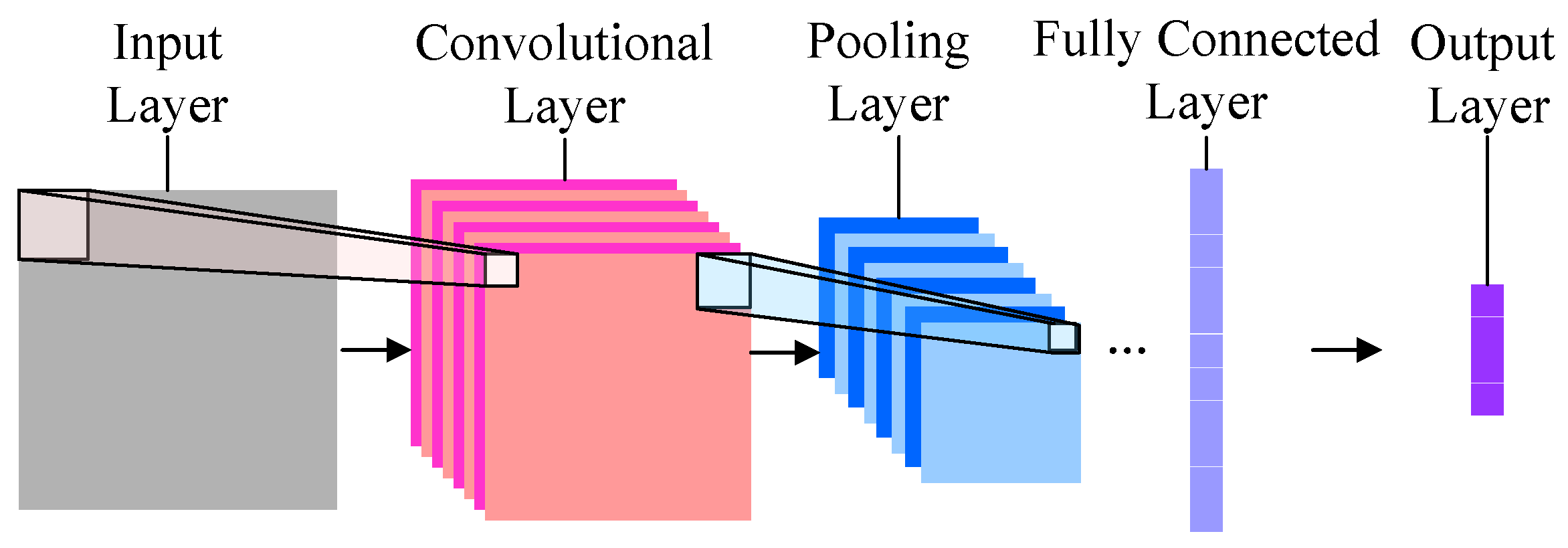

In this lab you will be using Keras to explore convolutional neural networks. You will start by experimenting with an already constructed convNet to learn the MNIST dataset. Once you understand how to use Keras to construct, train, and test a convNet, you will create your own convNet to classify images of dogs and cats.

Relative to all of the previous labs in this class, much of the design of the lab is left up to you. This is intended to start to prepare you for your upcoming AI project. You will likely be using some type of publicly available software, like Keras, to complete your project. You should get used to consulting the documentation when you have questions. I am also willing to help, of course.

Using Keras

Before using Keras, you need to activate a virtual environment that contains all of the software packages that you'll need:

source /usr/swat/bin/CS63env

deactivate

Deep learning software works best on machines with GPUs that have lots of available memory. Here is a summary of the CS machines with the best GPUs. When doing longer experiments you should ssh into one of these machines like this:

ssh -X username@machinename

MNIST: Classifying handwritten digits

Open up the file mnist_net.py and read through the code. Using a Keras network will typically require the steps listed below. Try to identify how each of these steps is being handled for learning the MNIST dataset.

1. Prepare the data
   This may include loading, reshaping, normalizing, and dividing the data into separate training and testing sets.
2. Construct the model
   We will be using Sequential() models. Add the layers in order from input to output.
3. Compile the model
   Specify the optimizer, loss, and metric that will be used.
4. Train the model
   Determine the number of epochs to complete.
5. Test the model
   After training is complete, analyze the results.

Typically the network's performance will not be as successful as you expected. To improve the performance you will need to iterate over these steps multiple times. In some cases, you may need to pre-process the data in some way to simplify the problem. Or you may need to tweak the model architecture, by adding more layers, or changing the parameters within existing layers. If your inputs are in the range [-1,1] rather than [0, 1], you may need to use a different activation function, like tanh. You might get better results with a different optimizer or loss function. If loss is still dropping, you may just need to train the model for more epochs.

Try to improve the performance on the MNIST data set.

Classifying Images of Dogs and Cats

Next we will explore a dataset from a Kaggle competition called Dogs vs Cats. Here is a description of dataset (excerpted from Kaggle):

Web services are often protected with a challenge that's supposed to be easy for people to solve, but difficult for computers. Such a challenge is often called a CAPTCHA (Completely Automated Public Turing test to tell Computers and Humans Apart) or HIP (Human Interactive Proof). HIPs are used for many purposes, such as to reduce email and blog spam and prevent brute-force attacks on web site passwords.

Asirra (Animal Species Image Recognition for Restricting Access) is a HIP that works by asking users to identify photographs of cats and dogs. This task is difficult for computers, but studies have shown that people can accomplish it quickly and accurately.

Asirra is unique because of its partnership with Petfinder.com, the world's largest site devoted to finding homes for homeless pets. They've provided Microsoft Research with over three million images of cats and dogs, manually classified by people at thousands of animal shelters across the United States.

Open up the file dogscats_net.py and read through the code that has been provided. I have created a directory containing nearly 25,000 images here:

    /home/meeden/public/dogs-vs-cats/


The images have been re-sized and padded so that they all have a uniform shape of (128, 128, 3). I have provided a read_data function that will read in a specified number of these images, and return a list of input vectors and a list of target vectors that you can use to build your training and testing datasets.

Writeup

In the file writeup.tex, you should describe the neural network you built and the experiments you ran. As you work, you should keep track of what network architectures and parameters you have tried and how well they classified the images.

You can edit the writeup.tex file with any text editor. There's lots of great help available online for latex; just google "latex topic" to find lots of tutorials. To compile your latex document into a pdf, run the following command:

pdflatex writeup.tex
