Project 2: Multi-Agent Pac-Man
Due Oct. 8

This project was developed by John DeNero and Dan Klein at UC Berkeley.

Introduction

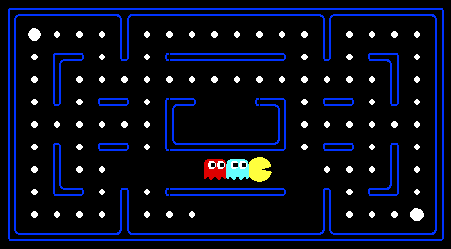

In this project, you will design agents for the classic version of Pac-Man, including ghosts. Along the way, you will implement minimax search with alpha-beta pruning and try your hand at evaluation function design.

The code base has not changed much from the previous project, but please start with a fresh installation, rather than intermingling files from project 1. You can, however, use your search.py and searchAgents.py in any way you want.

The code for this project contains the following files. You will get a copy of these files when you run update63.

Files you'll edit:
multiAgents.py Where all of your multi-agent search agents will reside.
Files you should look at:
pacman.py The main file that runs Pac-Man games. This file also describes a Pac-Man GameState type, which you will use extensively in this project
game.py The logic behind how the Pac-Man world works. This file describes several supporting types like AgentState, Agent, Direction, and Grid.
util.py Useful data structures for implementing search algorithms.
Files you can ignore:
graphicsDisplay.py Graphics for Pac-Man
graphicsUtils.py Support for Pac-Man graphics
textDisplay.py ASCII graphics for Pac-Man
ghostAgents.py Agents to control ghosts
keyboardAgents.py Keyboard interfaces to control Pac-Man
layout.py Code for reading layout files and storing their contents

Evaluation

Your code will be autograded for technical correctness. Please do not change the names of any provided functions or classes within the code, or you will wreak havoc on the autograder. However, the correctness of your implementation (not the autograder's judgements) will be the final judge of your score. If necessary, we will review and grade assignments individually to ensure that you receive due credit for your work.

In this project there are four required questions worth a possible 16 points.

This project is due by 11:59pm on Oct. 12. Run handin63 to turn in your solution.

Multi-Agent Pac-Man

First, play a game of classic Pac-Man:

python pacman.py
Now, run the provided ReflexAgent in multiAgents.py:
python pacman.py -p ReflexAgent
Note that it plays quite poorly even on simple layouts:
python pacman.py -p ReflexAgent -l testClassic
Inspect its code (in multiAgents.py) and make sure you understand what it's doing.

Question 1 (3 points)  Improve the ReflexAgent in multiAgents.py to play respectably. The provided reflex agent code provides some helpful examples of methods that query the GameState for information. A capable reflex agent will have to consider both food locations and ghost locations to perform well. Your agent should easily and reliably clear the testClassic layout:

python pacman.py -p ReflexAgent -l testClassic
Try out your reflex agent on the default mediumClassic layout with one ghost or two (and animation off to speed up the display):
python pacman.py --frameTime 0 -p ReflexAgent -k 1
python pacman.py --frameTime 0 -p ReflexAgent -k 2
How does your agent fare? It will likely often die with 2 ghosts on the default board, unless your evaluation function is quite good.

Note: you can never have more ghosts than the layout permits.

Note: As features, try the reciprocal of important values (such as distance to food) rather than just the values themselves.

Note: The evaluation function you're writing is evaluating state-action pairs; in later parts of the project, you'll be evaluating states.

Options: Default ghosts are random; you can also play for fun with slightly smarter directional ghosts using -g DirectionalGhost. If the randomness is preventing you from telling whether your agent is improving, you can use -f to run with a fixed random seed (same random choices every game). You can also play multiple games in a row with -n. Turn off graphics with -q to run lots of games quickly.

The autograder will check that your agent can rapidly clear the openClassic layout ten times without dying more than twice or thrashing around infinitely (i.e. repeatedly moving back and forth between two positions, making no progress).

python pacman.py -p ReflexAgent -l openClassic -n 10 -q

Don't spend too much time on this question, though, as the meat of the project lies ahead.

Minimax Search

Question 2 (4 points) Now you will write an adversarial search agent in the provided MinimaxAgent class stub in multiAgents.py. Your minimax agent should work with any number of ghosts, so you'll have to write an algorithm that is slightly more general than what appears in the textbook. In particular, your minimax tree will have multiple min layers (one for each ghost) for every max layer.

Your code should also expand the game tree to an arbitrary depth. Score the leaves of your minimax tree with the supplied self.evaluationFunction, which defaults to scoreEvaluationFunction. MinimaxAgent extends MultiAgentAgent, which gives access to self.depth and self.evaluationFunction. Make sure your minimax code makes reference to these two variables where appropriate as these variables are populated in response to command line options.

Important: A single search ply is considered to be one Pac-Man move and all the ghosts' responses, so depth 2 search will involve Pac-Man and each ghost moving two times.

Hints and Observations

Alpha-Beta Prunng

Question 3 (4 points) Make a new agent that uses alpha-beta pruning to more efficiently explore the minimax tree, in AlphaBetaAgent. Again, your algorithm will be slightly more general than the pseudo-code in the textbook, so part of the challenge is to extend the alpha-beta pruning logic appropriately to multiple minimizer agents.

You should see a speed-up (perhaps depth 3 alpha-beta will run as fast as depth 2 minimax). Ideally, depth 3 on smallClassic should run in just a few seconds per move or faster.

python pacman.py -p AlphaBetaAgent -a depth=3 -l smallClassic

The AlphaBetaAgent minimax values should be identical to the MinimaxAgent minimax values, although the actions it selects can vary because of different tie-breaking behavior. Again, the minimax values of the initial state in the minimaxClassic layout are 9, 8, 7 and -492 for depths 1, 2, 3 and 4 respectively.

Evaluating States

Question 4 (5 points) Write a better evaluation function for pacman in the provided function betterEvaluationFunction. The evaluation function should evaluate states, rather than actions like your reflex agent evaluation function did. You may use any tools at your disposal for evaluation, including your search code from the last project. With depth 2 search, your evaluation function should clear the smallClassic layout with two random ghosts more than half the time and still run at a reasonable rate (to get full credit, Pac-Man should be averaging around 1000 points when he's winning).

python pacman.py -l smallClassic -p AlphaBetaAgent -a evalFn=better -q -n 10

Document your evaluation function! We're very curious about what great ideas you have, so don't be shy. We reserve the right to reward bonus points for clever solutions and show demonstrations in class.

Hints and Observations

You have finished all of the required parts of Project 2.

Remember to run handin63 to turn in your solution before 11:59pm on Oct. 8.

Optional Extra Credit

Mini Contest (3 points extra credit) Pac-Man's been doing well so far, but things are about to get a bit more challenging. This time, we'll pit Pac-Man against smarter foes in a trickier maze. In particular, the ghosts will actively chase Pac-Man instead of wandering around randomly, and the maze features more twists and dead-ends, but also extra pellets to give Pac-Man a fighting chance. You're free to have Pac-Man use any search procedure, search depth, and evaluation function you like. The only limit is that games can last a maximum of 3 minutes (with graphics off), so be sure to use your computation wisely. We'll run the contest with the following command:

python pacman.py -l contestClassic -p ContestAgent -g DirectionalGhost -q -n 10

The three teams with the highest score (details: we run 10 games, games longer than 3 minutes get score 0, lowest and highest 2 scores discarded, the rest averaged) will receive 3, 2, and 1 extra credit points respectively and can look on with pride as their Pac-Man agents are shown off in class. Be sure to document what your agent is doing, as we may award additional extra credit to creative solutions even if they're not in the top 3.
