Week 12

Big-O Notation

Used for analysis of algorithms. Gives an approximation of the number of steps.

Definition of Big-O:

f(x) is O(g(x)) as x goes to infinity if and only if there exists positive constants m and x0 such that
f(x) < mg(x) for all x >= x0

Example 1:

  • f(x) takes 5 steps
  • g(x) = 1
  • f(x) <= mg(x) for all m >= 5

Therefore, f(x) is O(1).

Example 2:

  • An algorithm takes 3n + 6 steps
  • We think that it is O(n)
  • f(x) <= mg(x) for all m >= 4 and x0 >= 6

Example 3:

  • Algorithm: 2n2 + 3n + 6
  • We think that this is n2
  • f(x) <= mg(x) for all m* >= 3 and x0 >= 5

Main classes of orders:

  • constant: O(1)
  • Logarithmic: O(log n)
  • Linear: O(n)
  • Superlinear: O(n log n)
  • Polynominal: O(nm)
  • Exponential: O(mn)

Lists

Definition: an ordered collection of items.

Python has an implementation of lists. How do they work and how are they implemented?

First of all: What operations can we do with a list?

  • get the length (len(ls))
  • index into (ls[3])
  • add to end (ls.append("pony"))
  • add to middle (ls.insert(3, "a"))
  • remove from end (ls.pop())

Implementation of Lists in Computer Memory

Lists are implemented in two main ways:

Stored in consecutive locations

1000  1001  1002  1003  1004  1005  1006  1007  1008  1009  1010
'a'   'b'   'c'

A list like this has three pieces of information:

  • Base address
  • Block size (size of each item)
  • Capacity (maximum number of items)
  • Length (number of items)

How long does it take us to do the operations?

  • Get the length (constant time)
  • Index into the list (constant time -- just take base address, index, block size, and calculate)
  • Insert at end (constant time -- UNLESS the list is already full)

If the list is already full when we want to insert at the end, we need to allocate a new chunk of memory to act as the new list, and copy everything over. That will take linear time.

  • Insert in middle (linear time -- copy everything over by one)

Linked Memory

Linked memory does not require that the items are stored in one contiguous block. Rather, items are stored as a chain of nodes, where each node contains two pieces of information: The value of the item it is storing, and a pointer that links to the next node.

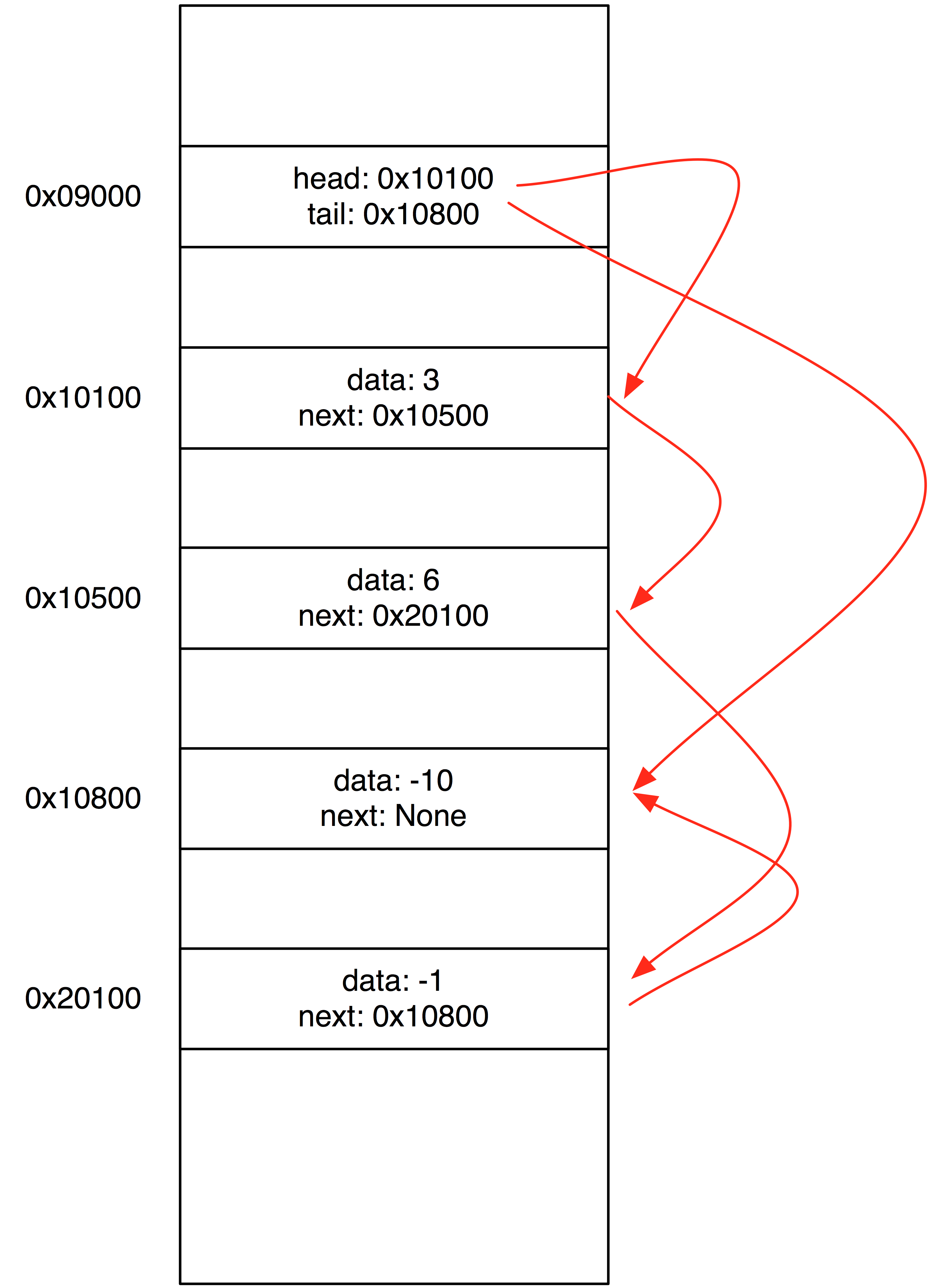

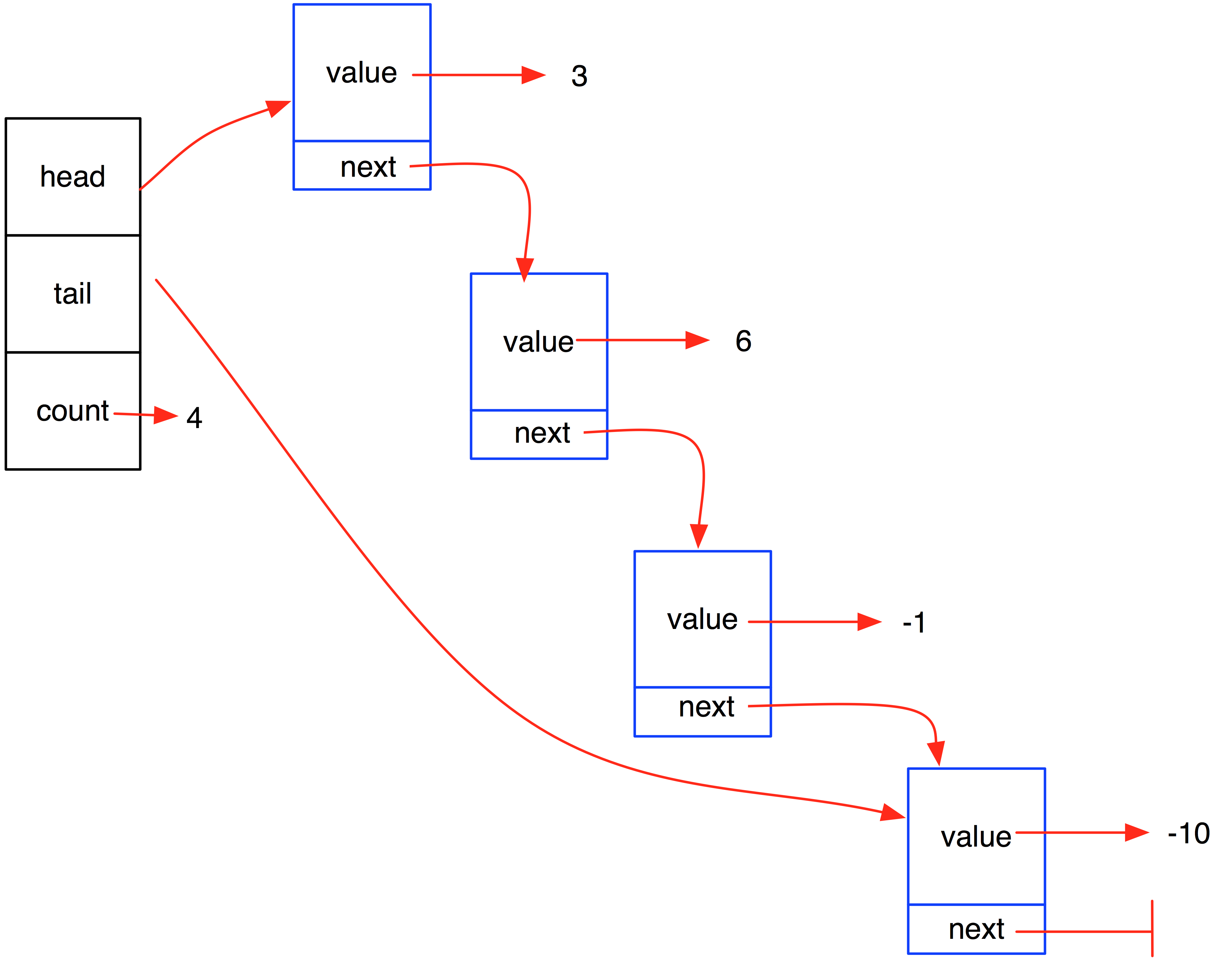

Linked List -- Visualization Linked List -- what actually happens in memory

Operations:

  • Get length (constant)
  • Index into (linear)
  • Insert at (linear, but does not require copying)
  • Delete from (linear, but does not require copying)
  • Insert at end (constant)

Linked lists have some advantages over consecutively-stored lists:

  • Do not require a contiguous chunk of memory
  • Insertion and deletion from the ends take constant time

The second point makes linked lists ideal for certain applications, such as queues and stacks.

Implementing Linked Lists

All linked lists have two classes:

The Node class describe the objects that store the data. Each Node also has a pointer to the next Node in the chain.
(A pointer is just a memory address -- we can find the next Node in the chain using its address.)

In [25]:
class Node(object):
    def __init__(self, data):
        self.data = data
        self.next = None

    def getData(self):
        return self.data

    def getNext(self):
        return self.next

    def setData(self, data):
        self.data = data

    def setNext(self, next_node):
        self.next = next_node

A LinkedList object keeps track of the head (the first Node in the chain) and the tail (the last Node in the chain):

In [26]:
class LinkedList(object):
    def __init__(self):
        self.head = None
        self.tail = None

One of the things that we often need to do with a LinkedList is to traverse it -- i.e. go through the entire chain from beginning to end, and print out each of the items in turn:

In [22]:
# This is for LinkedList
def __str__(self):
    output = ""
    current = self.head
    if current == None: # empty linked list
        return "<None>"
    while(current != None):
        output += str(current)
        current = current.getNext()
    return output

This means that we need to add an __str__() method for Node:

In [27]:
# This is for Node
def __str__(self):
    output = str(self.data)
    if self.next == None:
        output += " --| "
    else:
        output += " --> "
    return output
In [28]:
# Complete Node class

class Node(object):
    def __init__(self, data):
        self.data = data
        self.next = None

    def getData(self):
        return self.data

    def getNext(self):
        return self.next

    def setData(self, data):
        self.data = data

    def setNext(self, next_node):
        self.next = next_node

    def __str__(self):
        output = str(self.data)
        if self.next == None:
            output += " --| "
        else:
            output += " --> "
        return output
In [29]:
# Complete LinkedList class

class LinkedList(object):
    def __init__(self):
        self.head = None
        self.tail = None

    def __str__(self):
        output = ""
        current = self.head
        if current == None: # empty linked list
            return "<None>"
        while(current != None):
            output += str(current)
            current = current.getNext()
        return output
In [30]:
node1 = Node(3)
node2 = Node(5)
node3 = Node(-1)
node4 = Node(-6)

node1.setNext(node2)
node2.setNext(node3)
node3.setNext(node4)

linkedlist = LinkedList()
linkedlist.head = node1
linkedlist.tail = node4

print linkedlist

3 --> 5 --> -1 --> -6 --|
